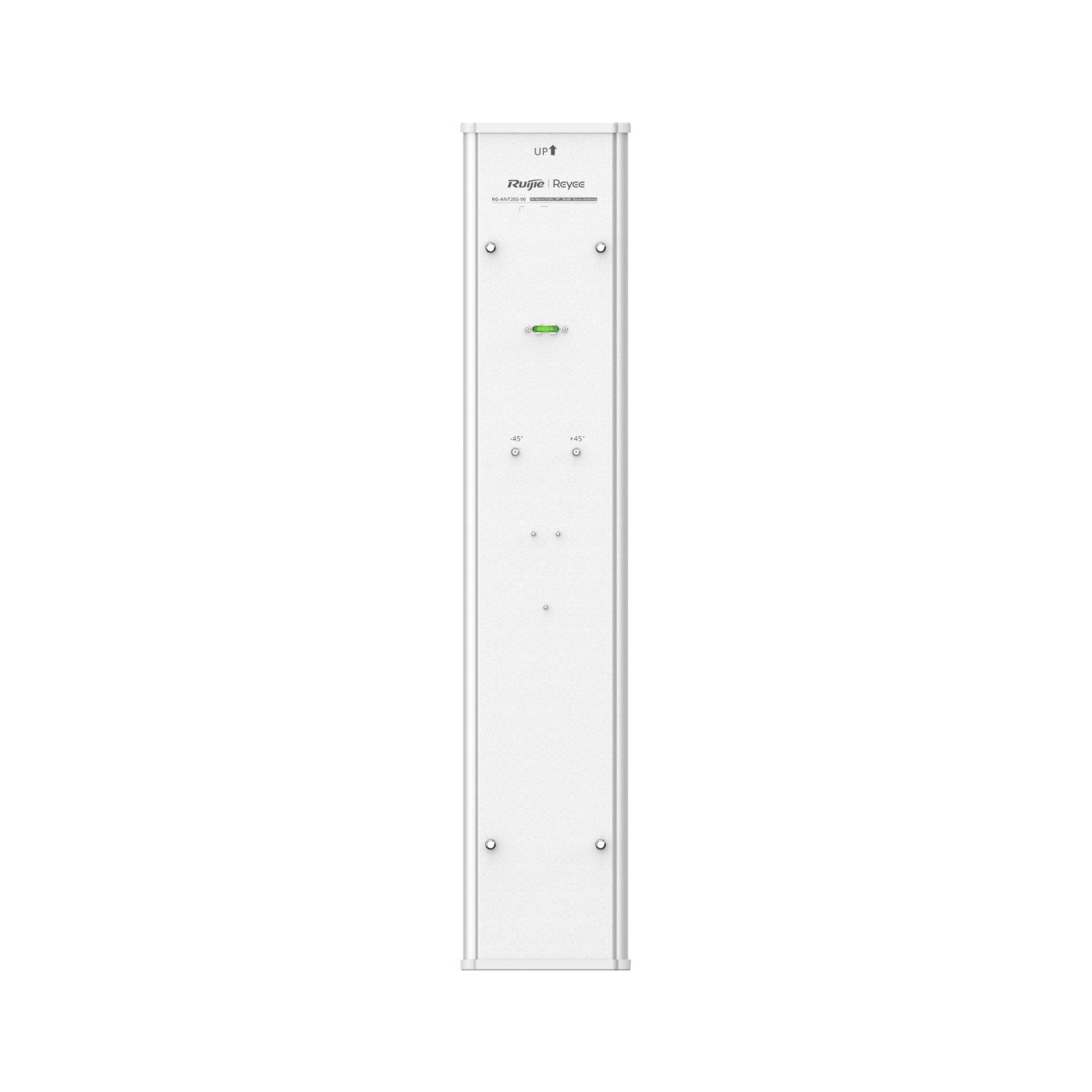

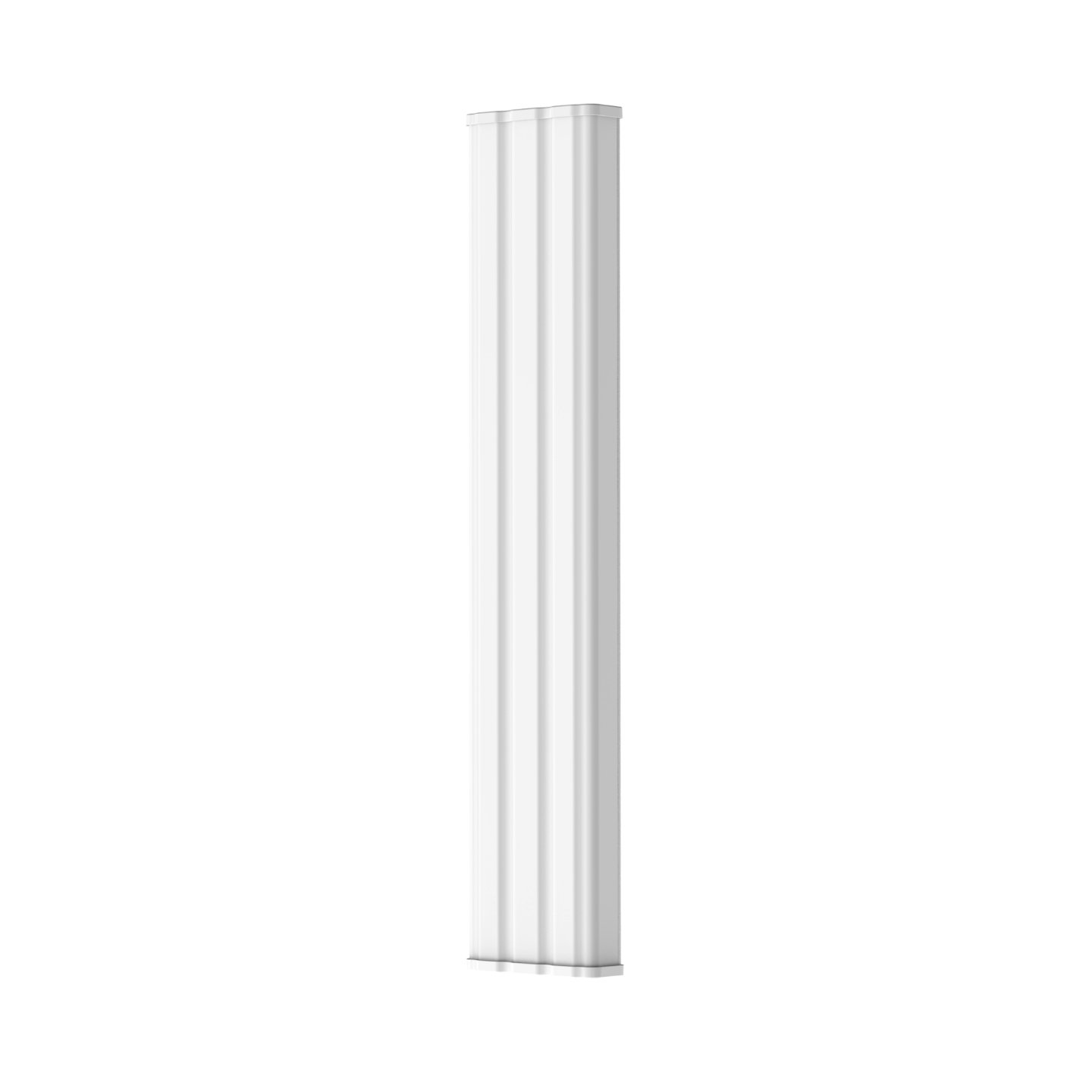

RG-ANT20S-90, 90° Sector Antenna of RG-AirMetro Series Wireless Bridges

The Ruijie Reyee RG-ANT20S-90 AirMetro Outdoor 5GHz 20dBi 90-Degree Sector Antenna has a 90° horizontal angle and a 7° vertical angle. It can achieve a gain of up to 20 dBi. Its 10 kilometre range makes it ideal for usage in PTMP scenarios in conjunction with the RG-AirMetro550G-B Base Station (separately offered). High-performance and reasonably priced, this antenna provides wide coverage without requiring extra cabling, making it perfect for both WISP and CCTV applications.

Highlights

Choose from Three Antennas for Diverse Scenarios (360, 120, and 90)
IP55 Rating against Harsh Environment
All-in-one Cloud Management Simplifies the User Journey

Login to view trade prices

Description
Description
Antenna
Antenna horizontal orientation
- 90°
Antenna vertical orientation
- 7°
Dimensions and Weight
Product dimensions (W x D x H)
- 139.9 mm x 48.9 mm x 694 mm (5.51 in. x 1.93 in. x 27.32 in.) (excluding mounting bracket)
Environment and Reliability
Operating temperature
- –40°C to +80°C (–40°F to +176°F)
Operating humidity
- 5% RH to 95% RH (non-condensing)
MTBF
- 400,000 hours (about 45 years)
IP rating
- IP55
