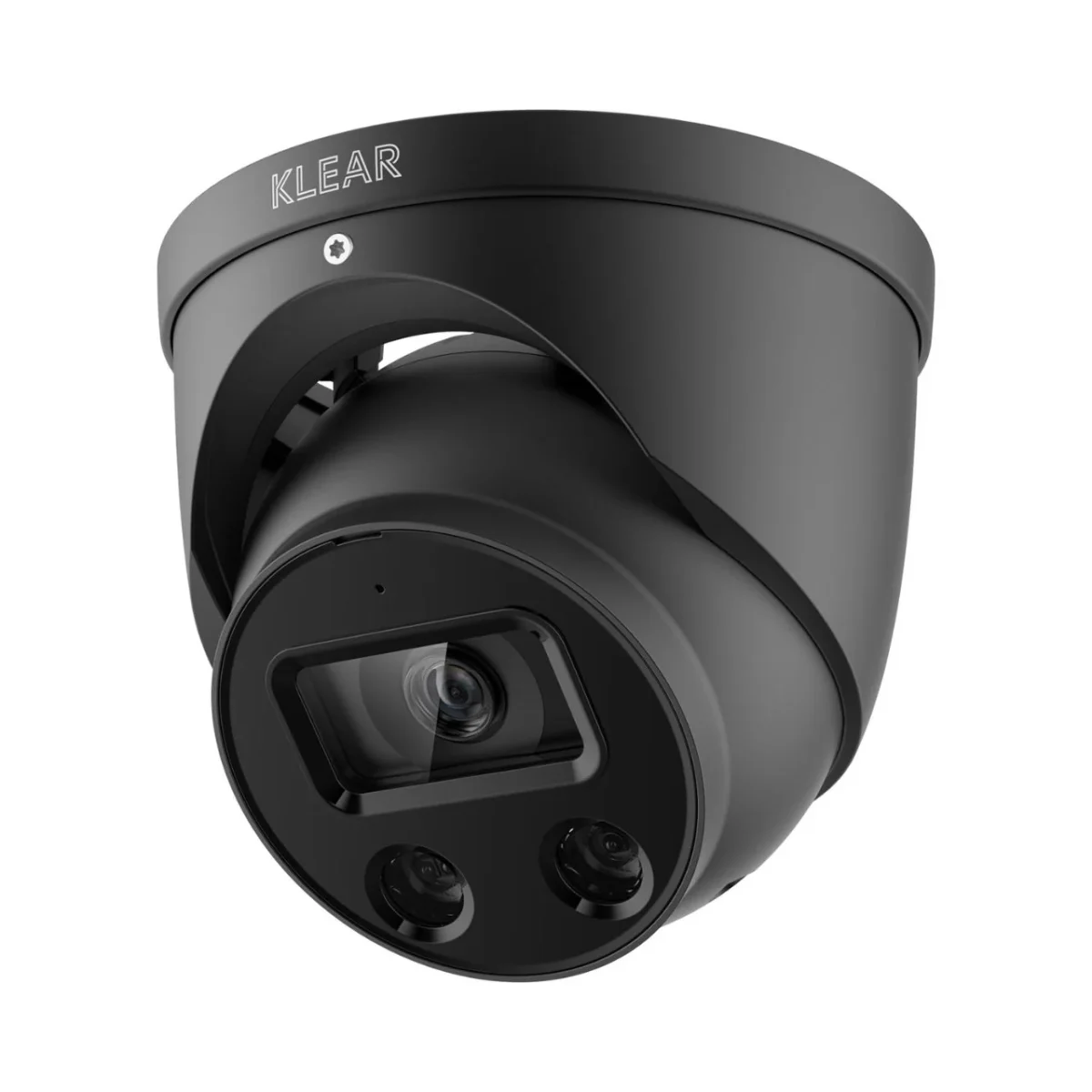

Description
- 1/2.8″ 8MP 3840×2160 Progressive CMOS Sensor
- KlearVu Hybrid IR+White LED up to 30m
- 2-Way Talk: Built-in Microphone + Speaker
- Siren + Red/Blue LED Strobe
- 2.8mm Fixed Lens, Horizontal FOV 106°
- 0.004 Lux @ F1.0 (Colour); 0.0004 Lux @ F1.0 (B/W)
- Smart Motion Detection (Human and Vehicle Detection)
- QuickPick in Live/Playback: highlight your Human/Vehicle target and search will be based on clothing/vehicle colour
- IP67, H.265+
| Camera | |||||
| Image Sensor | 1/2.8″ CMOS | ||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||
| ROM | 128 MB | ||||
| RAM | 512 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) | ||||
| 0.0004 lux@F1.0 (B/W, 30 IRE) | |||||
| 0 lux (illuminator on) | |||||
| S/N Ratio | ﹥ 56 dB | ||||
| Illumination Distance | Up to 30 m (98.43 ft) (IR) | ||||
| Up to 30 m (98.43 ft) (warm light) | |||||
| Illuminator On/Off Control | Auto; manual | ||||
| Illuminator Number | 1 (IR LED) | ||||
| 1 (warm light) | |||||
| Angle Adjustment | Pan: 0°–360° | ||||
| Tilt: 0°–78° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm | ||||
| Field of View | 2.8 mm: H: 106°; V: 55°; D: 125° | ||||
| Iris Type | Fixed | ||||
| Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft) | ||||
| DORI Distance | Detect | Observe | Recognize | Identify | |
| 91.0 m | 36.4 m | 18.2 m | 9.1 m | ||
| (298.56 ft) | ( 119.42 ft) | (59.71 ft) | (29.86 ft) | ||
| Intelligent | |||||
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) | ||||
| SMD 4.0 | Less false alarm, longer detection distance | ||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | ||||
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events | ||||
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. | ||||
| Video | |||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||
| AI Coding | AI H.265; AI H.264 | ||||
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps) | ||||
| Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) | |||||
| Third stream: 1920 × 1080@(1 fps–30 fps) | |||||
| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | |||||
| Stream Capability | 3 streams | ||||
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 32kbps–8192 kbps | ||||
| H.265:12kbps–8192 kbps | |||||
| Day/Night | Auto (ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120 dB | ||||
| Scene Self-adaptation | Yes | ||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas) | ||||
| Region of Interest (RoI) | Yes (4 areas) | ||||
| Smart Illumination | Yes | ||||
| Defog | Yes | ||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 8 areas | ||||
| Audio | |||||
| Built-in Mic | Yes, built-in dual Mic | ||||
| Built-in speaker | Yes, built-in speaker | ||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||
| Alarm | |||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | ||||
| Network | |||||
| Network | RJ-45 (10/100 Base-T) | ||||
| SDK and API | Yes | ||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P | ||||
| Interoperability | ONVIF (Profile S;Profile G;Profile T); CGI | ||||
| User/Host | 20 (Total bandwidth: 72 M) | ||||
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS | ||||
| Browser | IE: IE8/9/11 | ||||
| Chrome | |||||
| Firefox | |||||
| Management Software | Smart PSS; DSS; DMSS | ||||
| Mobile Phone | iOS; Android | ||||
| Certification | |||||
| Certification | CE-LVD: EN 62368-1; | ||||
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; | |||||
| FCC: 47 CFR FCC Part 15, Subpart B; | |||||
| UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | |||||
| Port | |||||
| Audio Input | 1 channel (RCA port) | ||||
| Audio Output | 1 channel (RCA port) | ||||
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC | ||||
| Alarm Output | 1 channel out: 300 mA 12 VDC | ||||
| Power | |||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||
| Power Consumption | Basic: 5.2 W (12 VDC); 5.5 W (PoE) | ||||
| Max. (pulling stream+warning light+speaker+warm light on): 9.2W (DC12 V) 10.2 W (POE) | |||||
| Environment | |||||
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH | ||||
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Metal | ||||
| Dimensions | 110.9 mm × Φ122.0 mm (4.37″ × Φ4.80″) | ||||
| Net Weight | 745 g (1.64 lb) | ||||
| Gross Weight | 915 g (2.02 lb) | ||||
