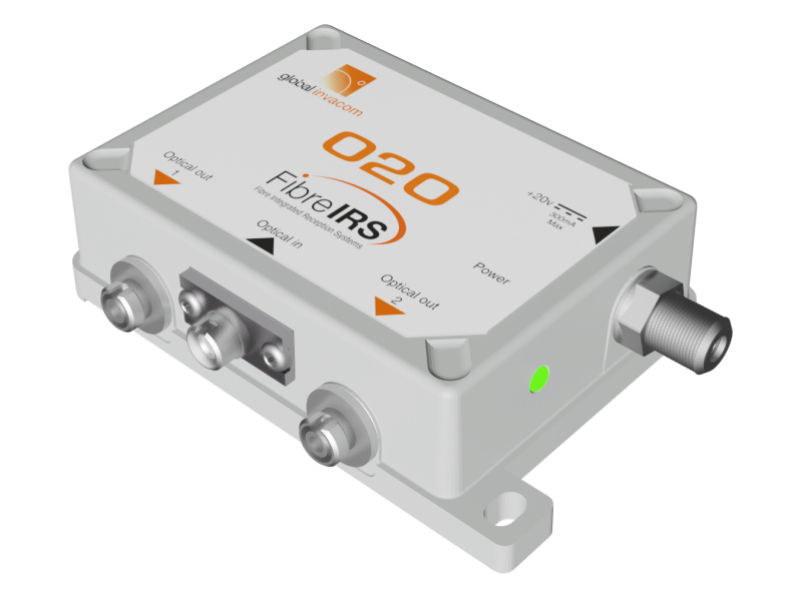

Description
FM.DAB,DTT & Satellite (Optical)
Optical wavelength (Input): 1100nm to 1650nm
Optical input power: -12dBm -3dBm
Optical output power: +7dBm
Return Loss: 20dB
RF Signal
RF frequency range (MHz): Min 88 / Max 5450
Gain variation across band: Max 5dB *
Gain ripple across 30Mhz: 1dB
- additional variation can occur due to satellite transmitted signal levels.
DC specification
Input voltage: 20V
Current consumption: 150mA Max
Connectors
Input: FC/PC
Output: 2 x FC/PC
Power supply: F connector
Environmental Specification
Operating temperature: -10°C to +50°C
Storage temperature: -40°C to +70°C
