Description
- Low insertion loss
- Low PDL
- High return loss
- Uniform power splitting
- Compact design
- Wide operating wavelength
- Wide operating temperature
- Excellent enviromental & mechanical stability
- Qualified under telcordia GR-1221 and GR-1209
- SC/APC standard connectors
Description
Inputs no: 1
Outputs no|: 8
Connectors Type: SC/APC
WaveLength nm: 1260-1650
Insertion loss dB: <10.1
Return loss dB: <55
Isolation dB: >40
Operating temperature°C: -20 – +55
Dimensions mm: 90x100x20

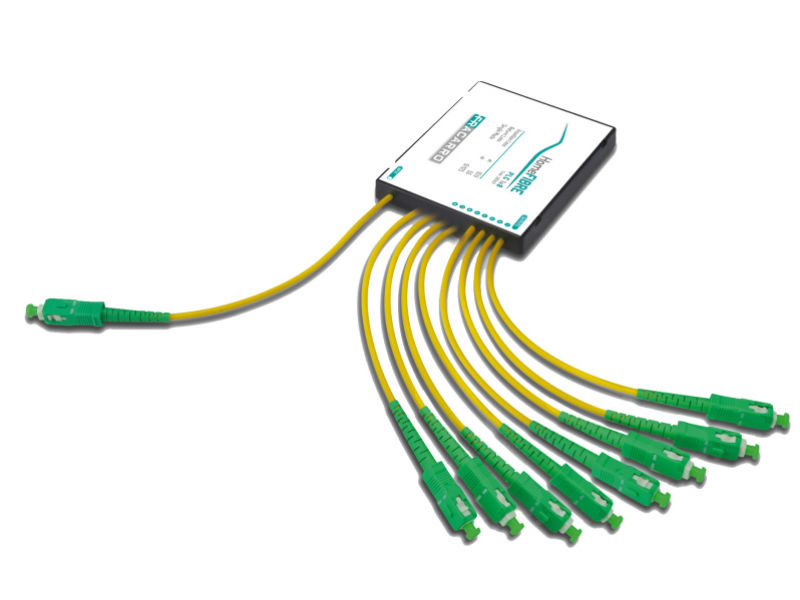

PLC 1×8
Fibre
Fibre type: 9/125
Length m: 1
Connectors Type:SC/APC
