Name: Clearflow 4 + 2 Unmanaged POE Switch 802.3af/at CF-POE4V2 - Blu Orb
SKU: CF-POE4

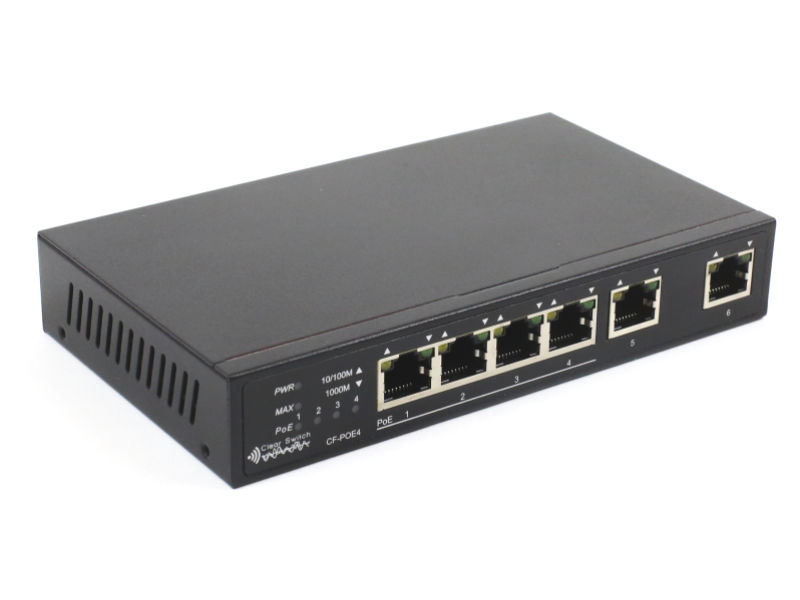

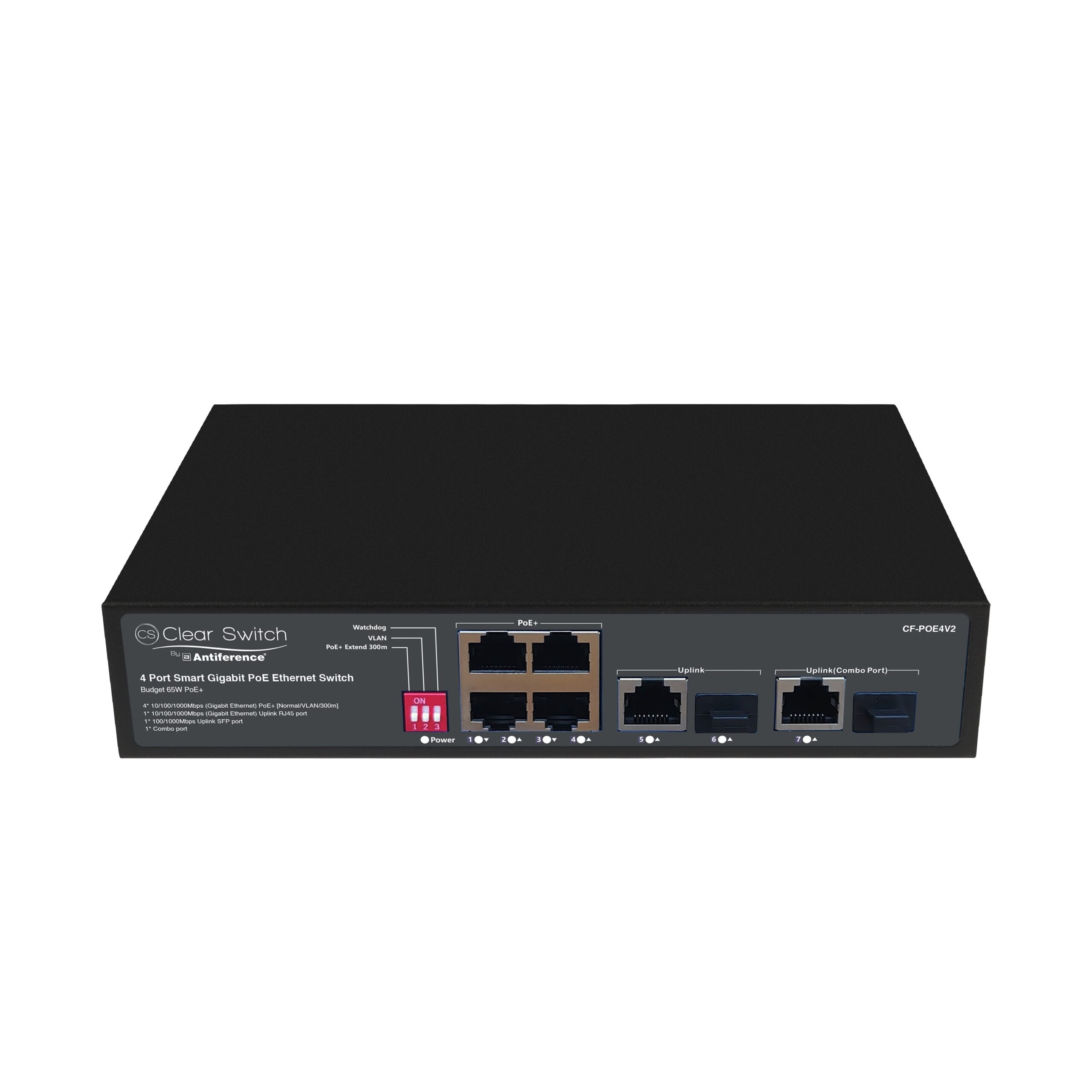

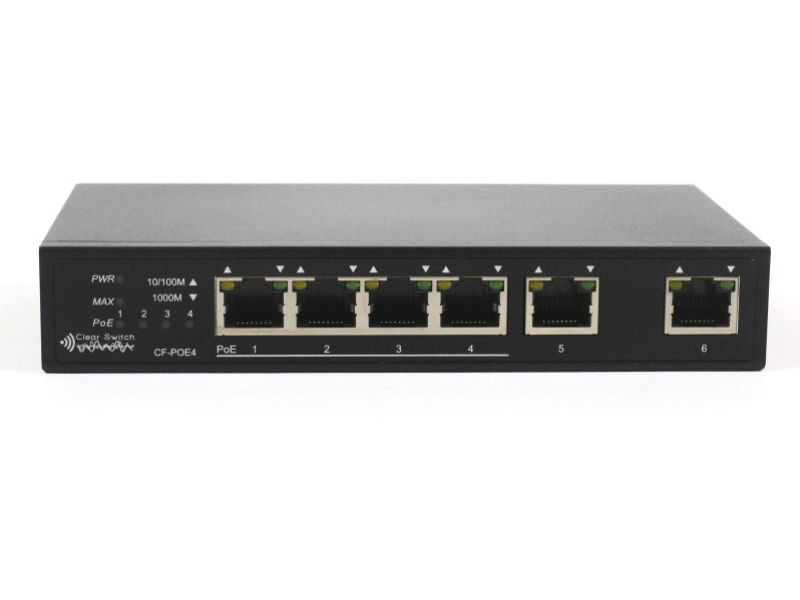

Clearflow 4 + 2 Unmanaged POE Switch 802.3af/at CF-POE4V2

A self-adaptive 48V PoE Ethernet switch perfect for use with Clear Flow wireless networks. This unmanaged switch is ideal for delivering the data and power to a Clear Flow system.

The product features 4 ports PoE plus 2 additional uplink/downlink ports for connecting to a larger switch or Clear Flow controller.

Description

Description

Main features:
RJ45 Interface: 6*10/100/1000Mbps
PoE Ports: 1 – 4
PoE Total: 65W
Power Supply: 72W
RJ45 PoE Power Supply :Mode A Anode 1/2, Cathode 3/6
PoE Power Output: 32W
Wireless Standard: IEEEE802.3 af/at
Network Media 10BASE-T, UTP cat 5, 5e ≤100m / 100BASE-TX, UTP cat 5, 5e ≤100m / 1000BASE-T, UTP cat 5, 5e ≤100m
MAC address table: 2K Auto study/updates
Transfer Mode :Store & Forward
Jumbo Frame: 9216 Bytes
Packet Buffer: 1.5M bit
Packet Forwarding Rate: 8.9Mpps
Bandwidth: 12Gbps
Fanless
Power Supply: DC 54.5V/1.32A
Size: 168x93x32mm
